Shanghe Intelligent Height Weight Scale Blood Pressure Fat Scale Analysis Medical Kiosk
Product Specifications:
| | |
| Measurement Items | Height, Weight, BMI, Blood Pressure, Heart Rate,Body fat analyzer |
| | Measure range: 20-205cm accuracy: ±0.5cm |
| ultrasonic probe |
| | Measure range: 5-500kg accuracy: ±0.1kg |
| precise balanced sendor |
| | Measure range: 0-299mmhg(0-39.9kpa) ; 40-180 heartbeat/minute |
| Measure accuracy: ±4mmHg; |
| | Measure range: Fat:5.0- 75% ; Basal metabolism:385kcal- 5000kcal; |
| Electrode method:Four electrodes, eight electrodes(optional) |
| Display Mode | 19.0 inch LCD screen, (Display date temperature in real time ,Play advertising video) |
| Print | Thermal automatic printing |
| Coin operated(Optional) | Intelligent multi-currency recognition |
| Power Supply Voltage | AC160v-250v,50HZ |
| Data Output Format | RS-232, Wifi, Bluetooth, 3G/4G,etc. |
| Identify(Optional) | QR code/barcode, Enter account/mobile number,IC/ID card, etc. |
| Overall dimension | 585*575*2350mm /LWH(mm) |
| Packing Size | 180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM |
Product Description:

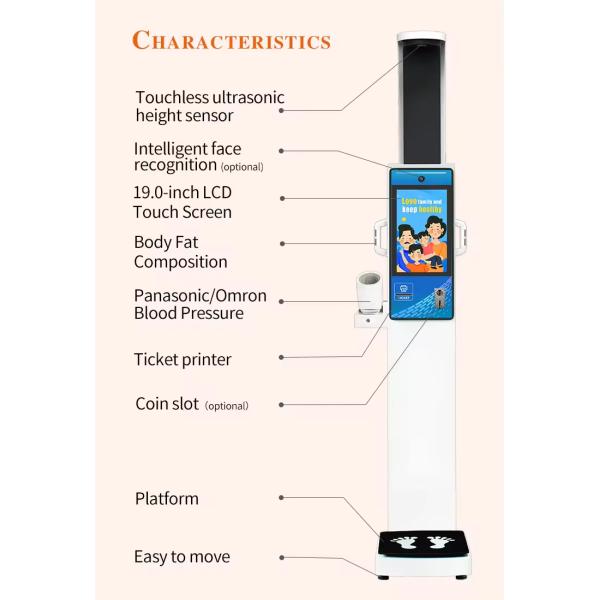

SH-V20 Health Checkup Kiosk Functions:
1.Ergnomic shape design
2.Fully automatic measurement of height and weight, automatic sensing system
3.Ultrasonic technology to measure height (temperature compensation)
4.Precision balance beam resistance strain sensor.
5.Intelligent calculation of BMl
6.Automatic measurement of blood pressure (high pressure, low pressure), pulse (heart rate)
7.4-electrode human bioelectrical impedance method (BIA);
8-electrode (optional) 8.19-inch screen digital LCD display
9.Coin operated/paper money (optional)
10.High-speed thermal printing, automatic printing of measurement results
11.Displays indoor temperature and current time
12.Data transmission: RS232 serial port,WiFi (standard); Bluetooth/4G/RJ45/cloud interface (optional), etc.
13.It can be connected with a computer, and the results are transmitted to the customer's Software.
14.Supports multiple languages and can switch languages on the screen.
15.Expansion: blood sugar, blood oxygen, body temperature, face recognition, barcode/QR code, IC/ID card etc.
Certifications:
Packaging&Shipping:
What is the SHANGHE Service?
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online or onsite technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
Company Profile:
|
|
Shanghe Intelligent Height Weight Scale Blood Pressure Fat Scale Analysis Medical Kiosk Images
|
